GN19 Indoor high voltage isolation switch

  • Product Detail

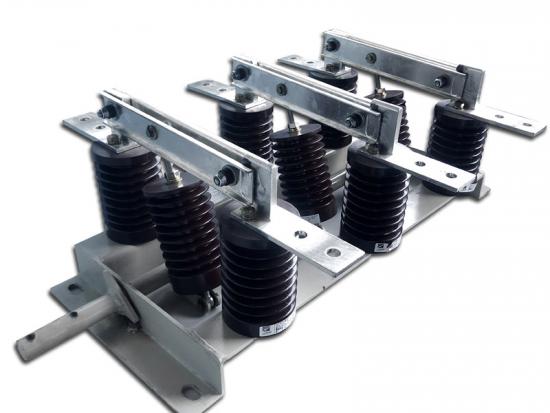

GN19 Indoor high voltage isolation switch


      Isolation switch is designed to provide safety isolation from high voltage without load for the purpose of installation and maintenance. Our Serie GN19-12 are indoor HV isolation switches with three-phase AC 50Hz and rated voltage of 12kV. It meets the requirements of GB1985-2004,GB/T11022-1999,and IEC62271-102, providing a more reliable performance by replacing traditional porcelain isolator with Epoxy resin.


Raled Voltage (kV)

Rated Current (A)

Short-time Withstand Current (kA/4S)

Dynamic Heat Stable Current (kA)

12

630

20

50

12

1000

31.5

80

12

1250

40

100

7.2

1600

31.5   (1s)

80
