Electric power ground switch JNH1-12 Series

It is independent research and design of our company, using a new contact structure. The static contact design is novel, good use of electric power and has guiding function.

  • Product Detail


Electric power ground switch JNH1-12 Series

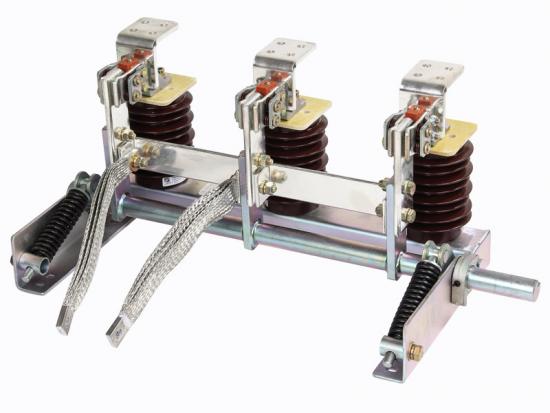

This electric power ground switch product is a new earthing swith designed and developed by our company. It is of an integral structure,featuring simple and advanced design and convenient installation. It adopts the new contact structure with national patent. The fixed contact is of novel design, with the guiding function when the single-blade moving knife is insered; the bulging contact is reliable and the pressing force is even. It is an ideal product for updating of earthing switch for middle-placed cabinet.


Rated Voltage  (kV)

Thermal Steady Current  (kA)

Thermal Steady Time(s)

Dynamic Steady Current (kA)

Short Circuit Making Current(KA)

Phase Distance(mm)

12

25

4

63

63

150-275

12

31.5

4

80

80

150-275

12

40

4

100

100

210-275


Environmental conditions

Ambient air temperature

+60℃ to -30℃,daily temperature difference: 30℃.(Actually upon the temperature of insulators)

Relative humidity

<90% (daily mean)

Seismic intensity

No higher than 8

Altitude

No higher than 1000m (if the product is to be used in plateau, please make a note in the order).

Places without fire or explosion hazards, or heavy dust, chemical corrosion or violent vibration.


Operating Interlock Machanism

Production Capacity


1.Annual Capacity: 30000 earthing switches

2.Over 30 machines,like CNC lathe, CNC milling machine, CNC bending, Automatic welding machine, Punching, Shearing machine etc

3.All kinds of Inspection Equipments:

switch mechanical characteristics tester, rockwell hardness tester, automatic spring tension and compression tester, circuit resistance tester, eddy current conductance tester, multifunctional electrolytic thickness tester, salt spray test and others

Professional research and development, strict inspection, perfect after-sales service.


Patent



Workshop


Partner





Jiangshan Electrical Technology Development Co., Ltd.,Founded in 1994,focus on grounding switch,Isolation switch,Transmission gear R&D and production.Science & Technology Enterprise of Zhejiang Province,13 Patents for Utility Models,2 Patents for Invention and 2 Patents in USA.Accumulated lots of experience in R&D and Quality Control which earned us a good reputation within the market. Professional research and development, strict inspection, perfect after-sales service.


send a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
related products
customized grounded power switch

Customized grounded power switch JNH4 Series

Cylindrical contact is national patent. Integral structure and good design has realized large-capacity current conveyance. Easy installation, stable performance.
Indoor grounded power switch

Indoor Grounded power switch JN15-12 Series

It is the optimization of JN15 series. All energy storage parts are metal materials. It avoids brittle cracking and bouncing caused by plastic parts. It also improves the design according to the special needs of customers, and improves the electrical and mechanical performance better.
customized size earthing switch

Customized earthing switch JNH15A-12 Series

Static contacts can be changed according to installation position. The earthing switch can be customized according to customer's static contacts size. Static contacts with grounding switches can also be selected.
35KV ABB grounding switch

35KV Indoor earthing switch JNH1-40.5G Series

This 40.5kV earthing switch can make great use of electric power in design. Thus, the operating force is greatly reduced and pass safety test.
DC intelligent control switch

DC Automatic control ground switch JNH15-12D Series

It is an intelligent control switch which integrates manual and automatic operation. With DC motor, reducer cabinet and clutch device, the clutch device will automatically release and connect according to demand, and realize automatic conversion between manual electric operation.
wind energy ground switch

Frequency wind energy earthing switch JNH18 Series

Simple structure and lower installation height. It is suitable for F-C network double-deck cabinet, single-deck cabinet and double-deck cabinet, frequency converter cabinet, wind energy, etc. with compact structure and narrow space.
high speed ground switch

Indoor High speed ground switch JNH1-24/27 Series

There are 24kV and 27kV. Simple structure, easy installation and operation, good reliability, it is a upgrade solution of JN4-24.
high voltage earthing switch

Indoor High speed grounded switch JNH1-7.2(s)/T31.5-90 Series

Compact structure, high security, small space, easy installation. It is a kind of earthing switch for supporting wind power system design.
